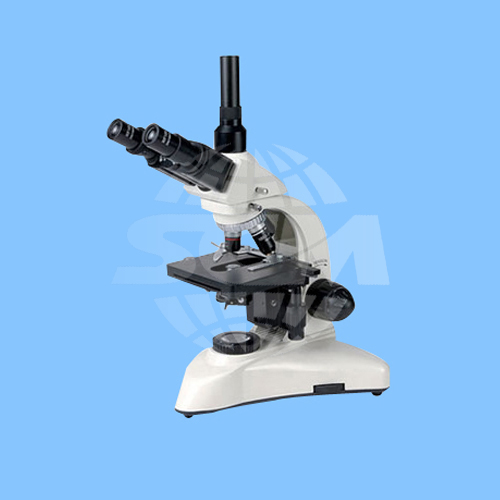

Specification

Viewing Head

Compensation free trinocular head, inclined 30°, 360° rotatable

Eyepiece

WF10X

Nosepiece

Quadruple

Objective

Achromatic: 4X、10X、40X(s)、 100X(s, oil)

Stage

Double layer mechanical stage 140 x 140 mm

Condenser

NA1.25 Abbe condenser with iris diaphragm & filter

Focusing

Coaxial coarse & fine focusing adjustment with rack and pinion mechanism, fine focusing scale value 0.002 mm

Collector

High brightness Kohler illumination

Light Source

AC Input 220V or 110V, halogen bulb 6V/20W, adjustable brightness

Optional Accessory

Compensation free binocular head,
Eyepieces: WF16x, WF20x
Plan objectives: 4X、10X、20X、40X(s)、60X(s)、100X(s, oil)
Semi-plan objectives: 4X、10X、20X、40X(s)、60X(s)、100X(s, oil)
Infinity objectives: 4X、10X、20X、40X(s)、60X(s)、100X(s, oil)
